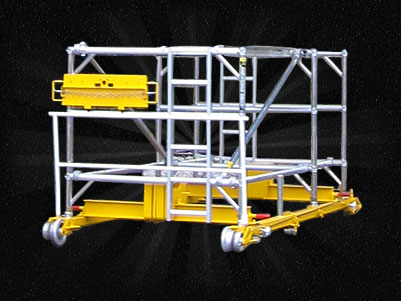

SCAFFOLD CART PLUS

The Permaquip Scaffold Cart Plus is designed for use on-track in conjunction with the special SGB Boss Ladderspan (aluminium construction) tower system (supplied), to access areas above the rail head, such as in tunnels etc. Each Scaffold Trolley Plus is equipped with a fail-safe braking system and is supplied with a Brake Handle, plus a battery operated inclinometer for added safety.

DIMS: (56 1/2" GAUGE)	L = 131 5/16", W= 65", H = 224 7/16" WITH TOWER UNIT
(63" GAUGE)	L = 131 5/16", W= 71 1/2", H = 224 7/16" WITH TOWER UNIT
MASS	56 1/2" GAUGE = 990LBS (WITHOUT TOWER UNIT) 63" GAUGE = 1005LBS (WITHOUT TOWER UNIT)
OPERATING PERFORMANCE	MAX GRADIENT = 1:30 MAX SWL, TOP PLATFORM = 605LBS MAX SWL, LOWER PLATFORM = 308LBS MAX SPEED (RAIL OR THROUGH P&C - HAND MANOEUVRED) = 3MPH MAX WIND SPEED = 8-12 MPH INCLINOMETER BATTERY = 9V DC PP3 TYPE

DIMS: (56 1/2" GAUGE)	L = 131 5/16", W= 65", H = 224 7/16" WITH TOWER UNIT
(63" GAUGE)	L = 131 5/16", W= 71 1/2", H = 224 7/16" WITH TOWER UNIT
MASS	56 1/2" GAUGE = 990LBS (WITHOUT TOWER UNIT) 63" GAUGE = 1005LBS (WITHOUT TOWER UNIT)
OPERATING PERFORMANCE	MAX GRADIENT = 1:30 MAX SWL, TOP PLATFORM = 605LBS MAX SWL, LOWER PLATFORM = 308LBS MAX SPEED (RAIL OR THROUGH P&C - HAND MANOEUVRED) = 3MPH MAX WIND SPEED = 8-12 MPH INCLINOMETER BATTERY = 9V DC PP3 TYPE
