DRILLS

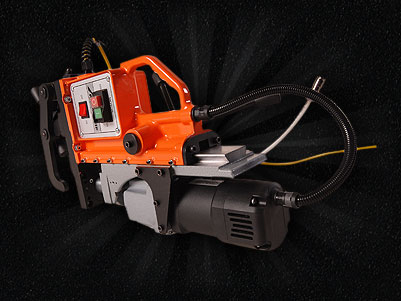

The TGD is a an awesome lightweight rail drill that is packed with unique features that make this the perfect solution for virtually all your rail drilling requirements. A cost effective solution to drilling clean, accurately positioned holes in rail sections for bonds and fishplates.

Its easy-to-use design combined with a rugged construction, means this quality product will stand the test of time - even in the most extreme environments! Available with a range of power sources, including Hydraulic, Petrol and Electric units, you're guaranteed to find a unit that will fit your needs.

Features:

• Drills up to 1.4 inches with annular broaching cutters
• 430 rpm free speed drilling
• Integral arbor support gives guaranteed hole tolerances & ensures no burring
• Totally enclosed cutter for absolute operator safety
• Unique 'Tommy Bar' clamping system allows confined space clamping e.g. guard rail
• Tough, spacious metal carry case provides transit protection for drill, tools & ancillaries
• Available in 4 power unit types;

•

  MOTOR	1150W, 2 SPEED
  POWER SOURCE	110V OR 220/240V
  NO LOAD SPEED	280 RPM OR 640 RPM
  DIMENSIONS	L = 23 5/8", W = 10 1/4", H = 18 1/8"
  CUTTER CAPACITY	Ø 1.4"
  MASS	42LBS
  HAV READINGS	< 5.6M/S2
  NOISE EMISSIONS	78DB(A) AT 3'4"

  TM1000H Stats:

  MOTOR	SINGLE SPEED HYDRAULIC MOTOR
  POWER SOURCE	HYDRAULIC PUMP (SUPPLIED SEPARATELY)
  NO LOAD SPEED	300 RPM
  DIMENSIONS	L = 24 13/16", W = 8 1/2", H = 13 3/8"
  CUTTER CAPACITY	Ø 1.4"
  MASS	51LBS
  HAV READINGS	< 5.6M/S2
  NOISE EMISSIONS	75DB(A) AT 3'4"
  HYDRAULIC PRESSURE	MAX = 1750 P.S.I. (INTERMITTENT 2175 P.S.I.) MAX FLOW = 7.9US GAL/MIN (20US GAL/MIN INTERMITTENT)

  TMP Stats:

  MOTOR	1.1KW
  POWER SOURCE	4 STOKE PETROL ENGINE (31CC)
  DIMENSIONS	L = 23 5/8", W = 10 1/4", H = 18 1/8"
  CUTTER CAPACITY	Ø 1.4"
  MASS	42LBS
