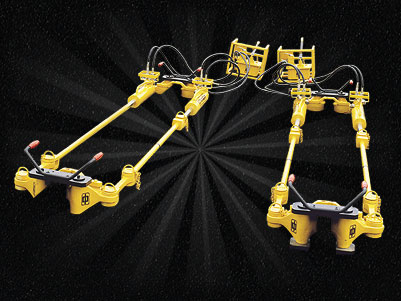

STRESSOR

The HSTY Stressor is designed to be used in pairs to adjust the gap between rail ends for rail stressing, rail welding, repairing rail failures and for installing insulated joints. The non-slip type clamps enable the gap to be maintained accurately in order to facilitate a stress-free weld.

The Stressor, available with Screw Type or Flat Faced Couplings, uses the Permaquip Power Pack to provide power for the Stressor. (Please note the Power Pack and Hoses are sold separately)


See the stats:

CLAMP ASSEMBLY DIMENSIONS	L = 25", W = 9", H = 14 3/8"
CLAMP ASSEMBLY MASS	145LBS
RAM ASSEMBLY DIMENSIONS	L = 33 1/4", W = 7", H = 9 1/4"
RAM ASSEMBLY MASS	92LBS
SHORT TIE BAR ASSEMBLY DIMENSIONS	L = 18 3/8", W = 3 1/2", H = 5 1/2"
SHORT TIE BAR ASSEMBLY MASS	20LBS
LONG TIE BAR ASSEMBLY DIMENSIONS	L = 63 3/8", W = 3 1/2", H = 5 1/2"
LONG TIE BAR ASSEMBLY MASS	49LBS
EXTENDED TIE BAR ASSEMBLY DIMS	L = 120 1/16", W = 3 1/2", H = 5 1/2"
EXTENDED TIE BAR ASSEMBLY MASS	81LBS
MAXIMUM PULLING FORCE	86 TONS (43 TONS EACH RAM ASSEMBLY)
