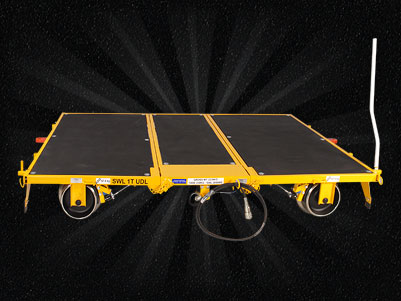

TOWING TRAILER

The Towing Trailer is designed to be used as a towed or propelled vehicle for people and as a load-bearing rolling platform for use on-track. It has been designed to be used with the People Carrier Insert which can accommodate up to 6 persons.

The Towing Trailer has been designed to be split into sections to aid handling and transporting to and from site. Each Towing Trailer is equipped with a fail-safe hydraulic braking system when used in conjunction with an appropriate towing vehicle.


DIMENSIONS	L = 103 9/16", W = 70 7/8", H = 13"
MASS (UNLAIDEN)	506LBS
MAXIMUM COUPLED TOGETHER	4*
MAXIMUM SPEED	20 MPH
CARRYING CAPACITY	SWL = 4400LBS UDL
SWL OVER THE HYDRAULIC INSERT	1100LBS UDL
