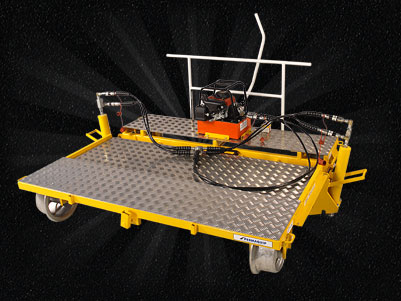

The Rail Jacking Cart is a manually propelled, portable cart, delivering the ability to lift unclipped rail for the removal and/or replacement of pads or ties and fitting under rail rollers for stressing. Extremely versatile and built to last, this unit has a design that will save you time and money without compromise.
The Cart contains an integral power pack for simple operation. Ram's are fitted to both sides, which can be rotated away from the rail when not in use and from the users point, that's fantastic. It also sports an independent battery and lights that illuminate the working area and the cart, while the deck delivers an area for storing rail pads, under rail rollers and anything else you want to throw on it.
DIMENSIONS | L = 61 7/16", & RAMS UP W = 74 13/16", H = 18" |
MASS | 473LBS (ADD 33LBS FOR POWER PACK ASSEMBLY) |
OPERATING PERFORMANCE |
MAX SWL UDL ON CART DECK = 1,650LBS MAX LIFT RAM FORCE = 4.5 - 5.84 TONS MAX LIFT (WITHOUT EXTENSIONS OR SUPPORTS) = 5 INCHES MAX PAD REPLACEMENT = 400/HR MAX UNDER RAIL ROLLER PLACEMENT = 3,300FT/HR |
OPERATING PRESSURE | 2,300 P.S.I. - 3,000 P.S.I. |
FUEL SPECIFICATION | UNLEADED 95 RON PETROL (HONDA ENGINE ONLY) |
NOISE EMISSIONS | 84-96DB(A) (DEPENDING ON RPM & LOAD APPLIED) |
POWER PACK | HONDA (4-STROKE) OR TECUMSEH (2-STROKE) |
