RAIL JOINT STRAIGHTENER

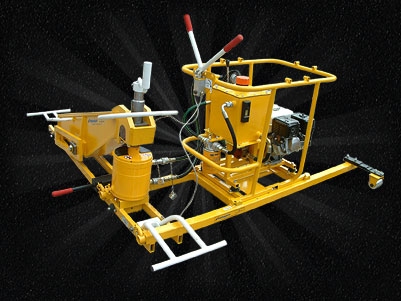

The Permaquip Rail Joint Straightener (RJS) is a portable, one rail unit, capable of straightening both welded and fish plate rail joints at a rate of up to 40 joints per hour, recovering a maximum dip of 1 inch.

The unit contains an integral power pack for simple operation, together with a high capacity ram fitted with a graduated scale to read the actual rail deflection at the joint. Simple, effective and very efficient.


DIMENSIONS	L = 79 3/4", W = 68 7/8", H = 51 5/8"
MASS	697LBS
FUEL TYPE	UNLEADED 95 RON PETROL
OPERATING PRESSURES	TO LIFT DIPPED JOINT (RAM EXTENDED) = 3,000 P.S.I. TO CLOSE (RAM RETRACTED) = 500 P.S.I.
OPERATING PERFORMANCE	RAM FORCE = 55.3 TONS MAX FORCE AT RAIL JOINT = 113.5 TONS MAX JOINTS PER HOUR = 40
ENGINE SPECIFICATION	HONDA GX160
NOISE EMISSIONS	90DB(A) AT OPERATORS POSITION
