SWITCH GRIDING MACHINE(OTS1.1)

Even today, demanding manual work and high-performance machinery need to be combined when it comes to grinding in the rail construction sector. The the flexible settings and wide range of options boasted by the affordable hand-held track grinder developed by OWS seamlessly combine track work performed manually and by machine. In particular, the following tasks are made possible:

 Profile-oriented processing of crossing frogs with rigid and flexible tips
 Milling and finishing of closed and opened switch blades
 Track profiling behind the check rail
 Wing rail grinding
 Work on expansion joints
 Surface damage repairs on rails (e.g. head checks, burr formation)
 Grinding and deburring of the railhead on straight sections, curved sections and switches
 Final railhead profiling after welding

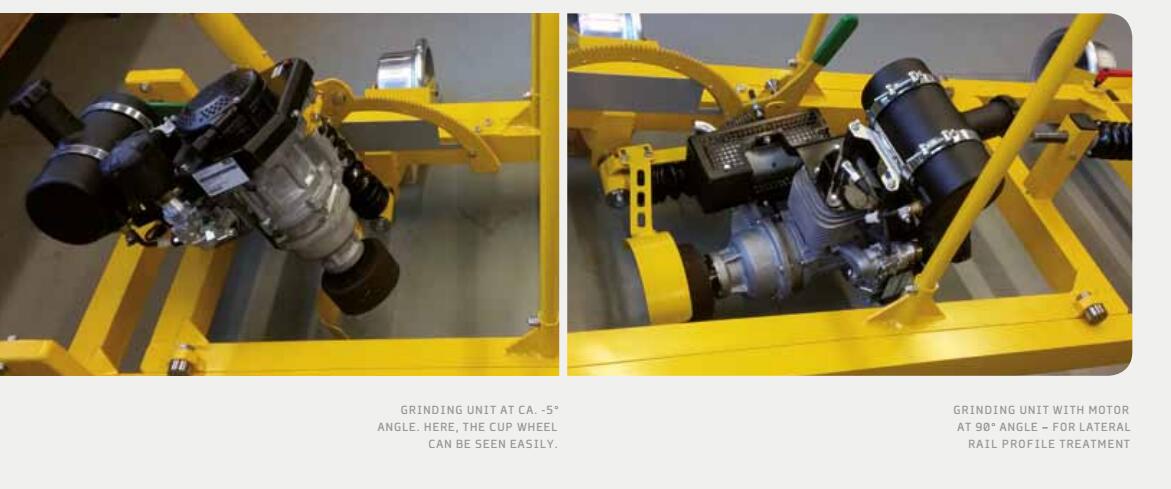

2-stroke motor, 5 kW, 4100 rpm Stepless vertical adjustment for setting the cup wheel Micro-adjustable grinding angle from +90° bis -15° (locking position) Grinding unit can be adjusted by 400 mm along the Y-axis Suitable for cup wheels with a diameter of 150 mm. Track gauges from 1,000 mm to 1,700 mm possible thanks to the adjustable aluminum frame Isolated wheels, a total weight of 95 kg, custom color schemes。
