MAX- RP55 NEW VERSION

The application fields of Max-RP55:

- checking the manufactured rail profile at takeover,
- periodic checking the rail wear for planning the maintenance,
- measuring the eliminated material and measuring the profile during grinding activity.

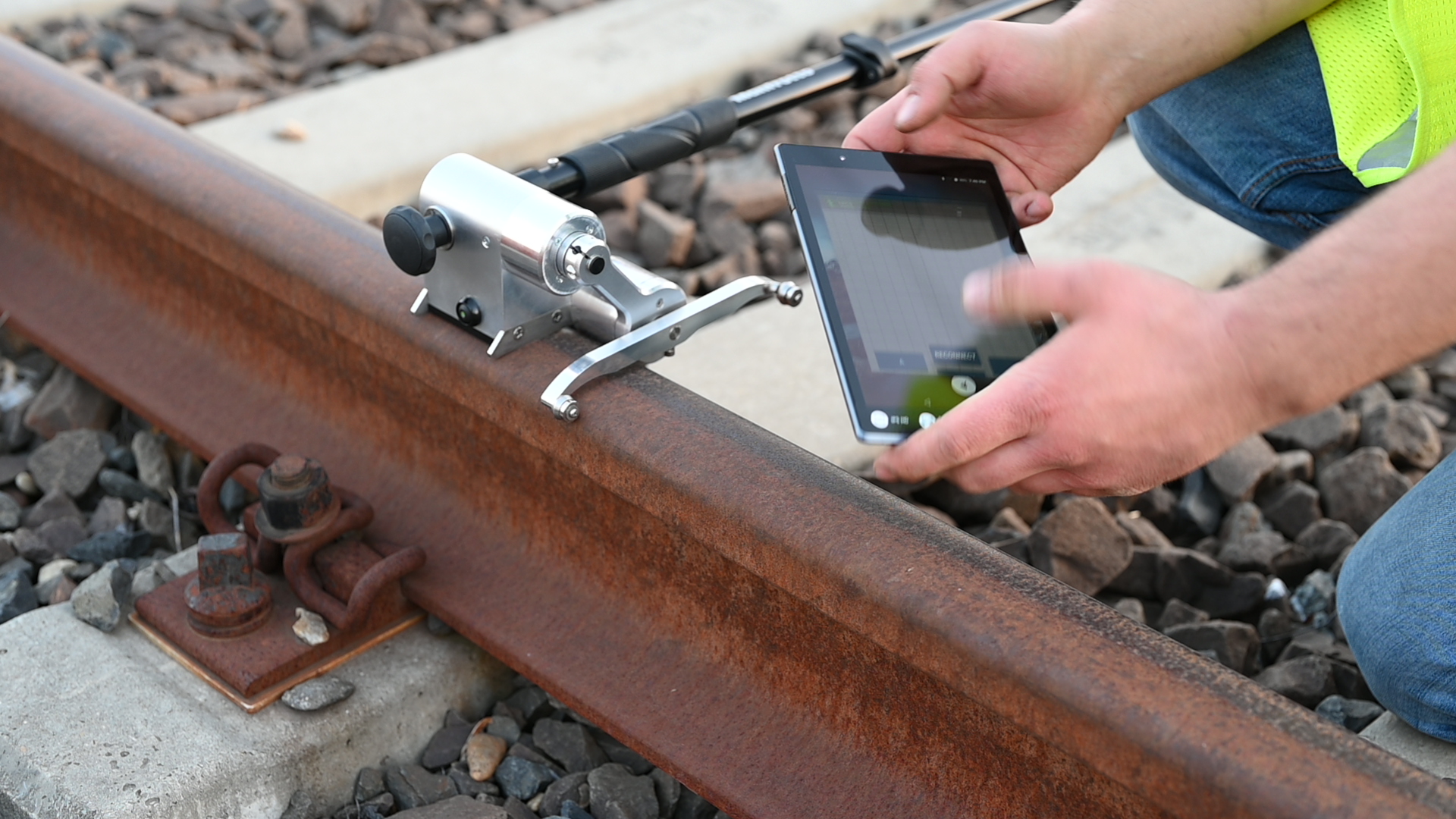

The portable Max-RP55 is a very effective equipment for measuring the rail profile because of its light weight, simple  and quick operability. The magnetic measuring base and the telescopic support leg provide the stability of the adequate measuring position. The mechanical scanning roller scans the real rail profile, therefore the contamination on the rail surface does not distort the measurement. The profile measurement can be done on most of the rail types e.g.  on  Vignol and Phoenix rails as well. The double measuring bar provides the possibility to measure the rails with extreme wear, rails with crinkling and the inclination of the rail can be calculated by measuring the bottom surface of the rail head. The geometric preparation of the bar was done by taking into consideration ergonomic examinations in order to decrease the number of the unnecessary move of the hands.

The hand held computer connects to the Max-RP55 via Bluetooth connection. Shock and resistant and waterproof transopt box provides the safe transportation of the device and its accessories. The changeable battery ensures the continuous operation over several shifts.

The functions of the measuring program:

- recording the identification data of the measurement,
- the instant display of the measuring results,
- calculation of wear features from the measured profile,
- comparison of two measurements,
- numeric display of differences.

Technical specification


Resolution	20µm
Accuracy	±20 µm
Repeatability	±5 µm
Time demand of one measurement	cc. 4 seconds
Operating temperature	-20°C … +50°C
Measuring rate	5 KHz
Supply	1 x Li-ion rechargeable battery (18650 type)
Operating time	min. 8 hours /1000 measurements
Insulation resistance	2 Mohm/500 V (DC)
Dust and water resistance	IP54
Communication way	Bluetooth
Dimensions	125x150x150 mm
Weight	0.9 kg
