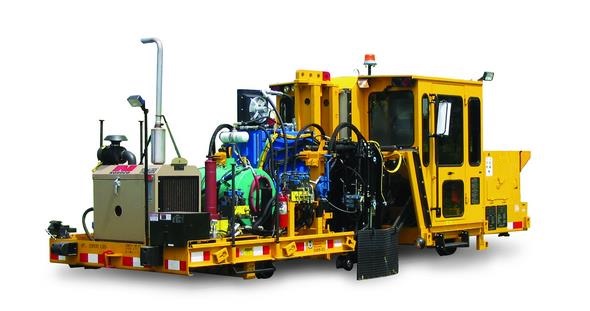

PRODUCTION SPIKE DRIVER

Category	Specification	Value
General	Weight	28, 750 lbs (30,350 lbs with bulk loader option)
	Length	25” 8”
	Width	8” 6”
	Height	9” 10”
	Wheel base	13’ 6”
	Travel speed	25 mph (maximum)
Capacities	Fuel tank	120 gallons
	Hydraulic tank	110 gallons
Engine	Make/Model	John Deere 4045TF, 99 HP, four-cylinder, turbo diesel-fired (140 HP engine required with auto spike feeder option)
Hydraulic System	Pumps	Vickers PVH Series
	Control valves	Vickers manifolded
	Oil Cooler	Electric fan, 80 GPM
Electrical System	Battery	24 Vdc (dual 12V DC batteries), 1150 cold-cranking amps
Axle / Wheels	Axle size / Wheel size and type	3-inch standard (3 7/16-inch with bulk loader option)/ 16-inch diameter, cast steel
Brakes	Type	Four-wheel shoe type, spring-actuated, hydraulic-release
